NABRICO Winches

CTD Series

Manual, electric, hydraulic, air, barge-moving, mooring, and railcar winch systems.

Product information

Details

CAPSTAN PEGS

316 STAINLESS STEEL

PRECISION MACHINED

TAPERED FOR SECURE ROPE DOGGING

THREADS DIRECTLY INTO CAPSTAN HEAD

CAPSTAN HEAD

TAPERED HEAD

SMOOTH CORE TO EXTEND ROPE LIFE

GRADUAL TOP/BOTTOM TRANSITION

DIRECT DRIVE

GEARBOX DIRECTLY COUPLED TO HEAD

NO EXTERNAL GEARING / WEAR ISSUES

HEAD ROTATES ON SEALED BEARING

HIGH BOLLARD PULL CAPACITY ANGLED BASE PLATE

ANGLED BASE PLATE

ANGLE FORCES ROPE ONTO HEAD

BOLT PATTERN TO MATCH EXISTING

HEAD RECESSED INTO BASE

GEARBOX/BRAKE MOTOR

FULL ENCLOSED PLANETARY REDUCER

OIL LEVEl/FILL ACCESS ABOVE DECK

TENV MARINE DUTY IP66 MOTOR

EPOXY DIPPED WINDINGS

SEALED IP66 BRAKE

2 SPEED MOTOR AVAILABLE

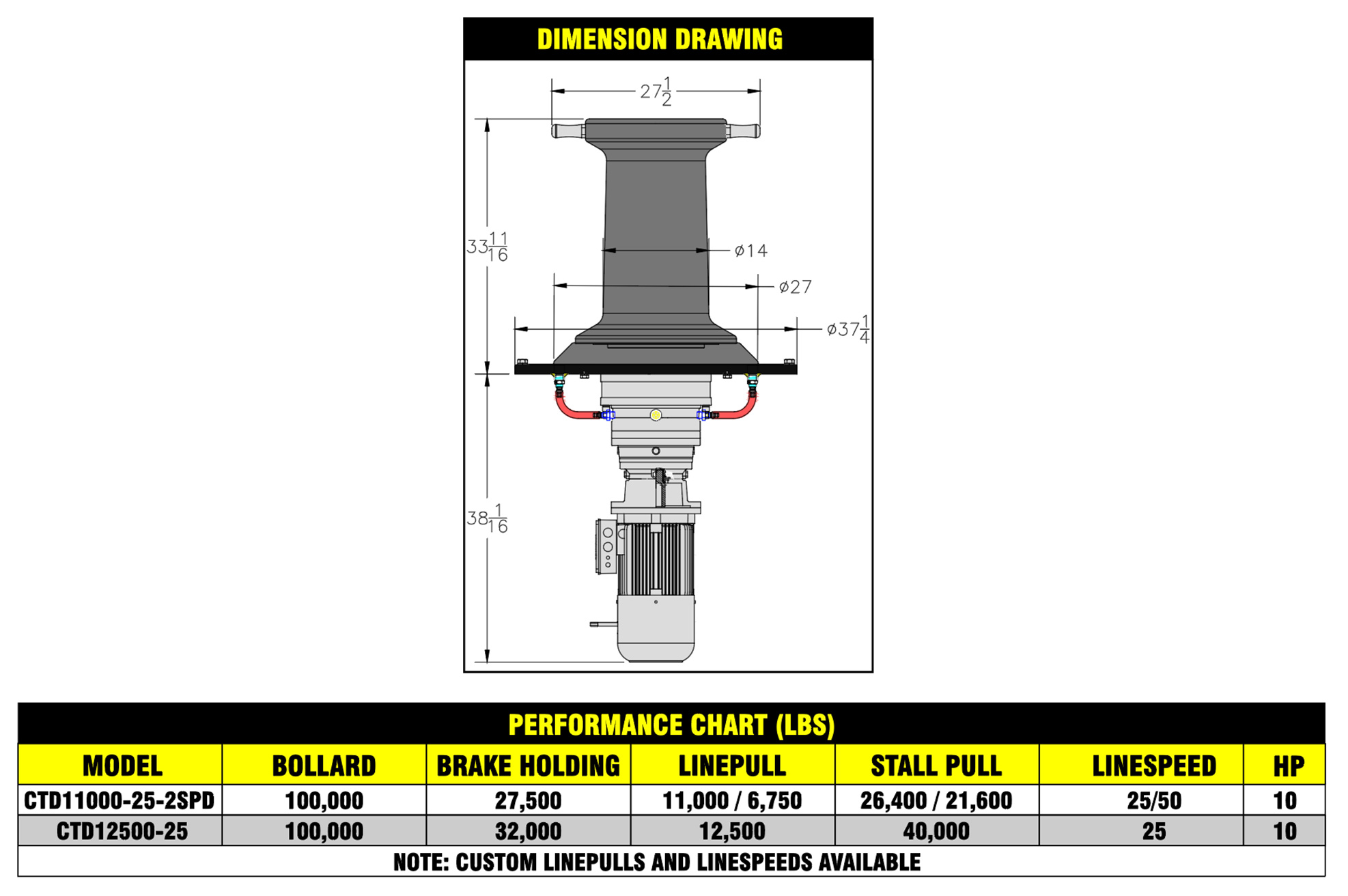

Product Specifications
