NABRICO Winches
HM Series
Manual, electric, hydraulic, air, barge-moving, mooring, and railcar winch systems.
Product information
Details
Standard Features:
Cast steel drums and ring gear
Steel load bearing components, cast steel frames
Replaceable bronze bushings
One piece fully adjustable 14″ long steel operating handle with pinion
Spring loaded holding dog with release handle
Hand operated, adjustable holding brake
Easy free spooling
Two speed gear change offers fast cable take up and easier winching
Options Available:
28″ diameter hand wheel
Hand wheel for units with disc brake handle (SBH)
Extended shaft pinion 17/16″ x 12″
Power drive pinion
Gear covers
Disc brake handle (SBH)*
Marine 812 top coat
Reverse dog assembly
Drum divider flange
* Disc brake handle incorporates a “Weston style load brake to automatically hold the rated load in lifting applications.

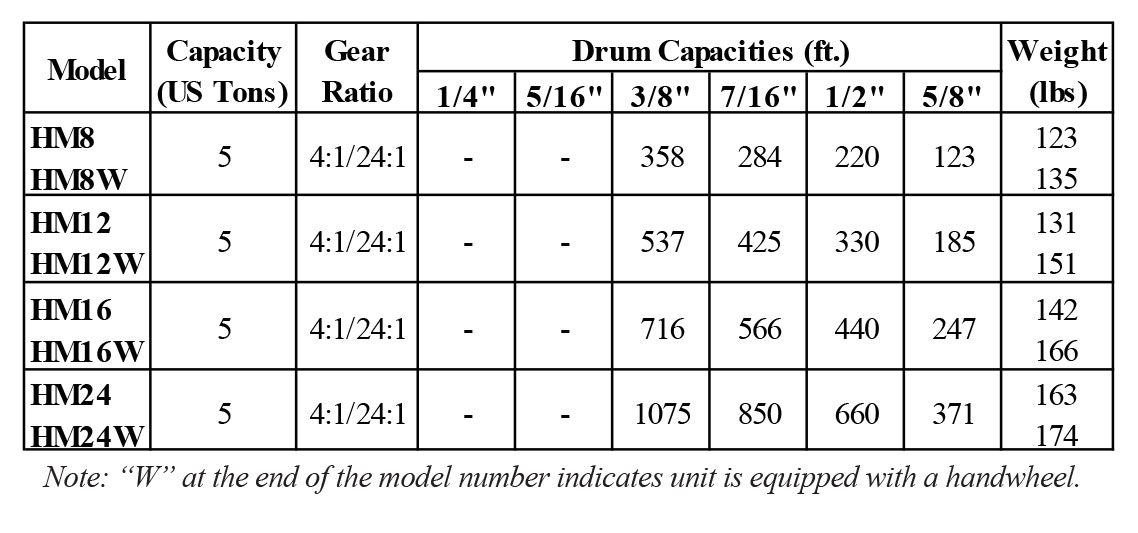

Product Specifications
Product Specifications
