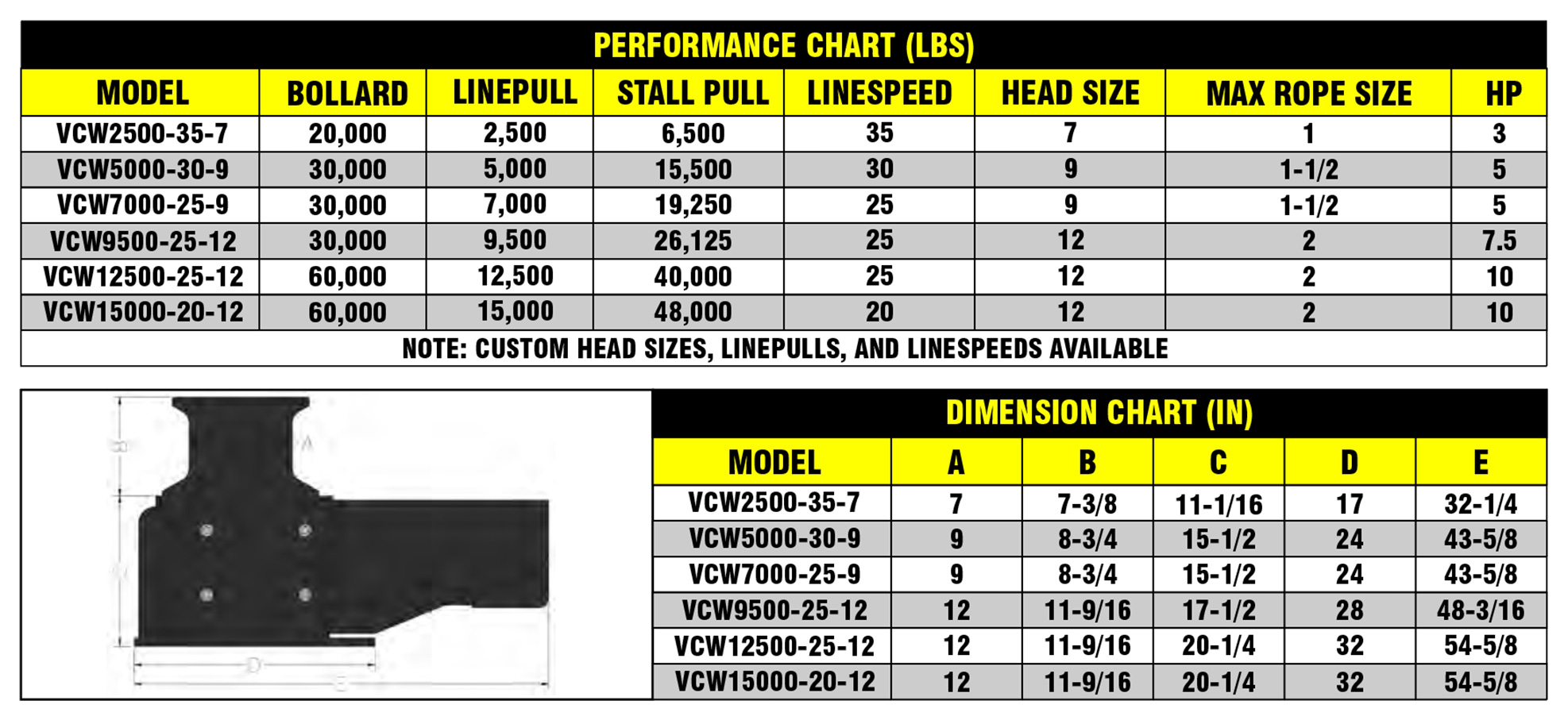

VCW Series

Features

MOTOR GUARD

PROTECTS MOTOR / BRAKE

BENT AND WELDED STEEL PLATE

KEEPS TAIL END OF ROPE OFF DECK

EASILY REMOVABLE

SEALED MOTOR / BRAKE

TENV MARINE DUTY IP66 RATED

EPOXY DIPPED WINDINGS

NO BRAKE ADJUSTMENT REQUIRED

DIRECT DRIVE

GEARBOX DIRECTLY COUPLED TO HEAD

FULLY ENCLOSED HELICAL BEVEL REDUCER

NO EXTERNAL GEARING / WEAR ISSUES

PRECISION MACHINED COUPLING SHAFT

CAPSTAN HEAD

PRECISION MACHINED STEEL

SMOOTH CORE TO EXTEND ROPE LIFE

PROFILE BASED ON ASTM STANDARD

HOLES FOR DOGGING PEGS (OPTIONAL)

EXTERNAL BEARING

SEALED / MAINTENANCE FREE

REDUCES LOAD ON GEARBOX

PROVIDES HIGH BOLLARD CAPACITY

FABRICATED BASE

FULLY WELDED STEEL FRAME

COMPLETELY HOUSES GEARBOX

BOLT PATTERN PROVIDED

INTEGRAL LIFTING LUGS
