Premium Rope And Cordage
Rugged XII Synthetic Face Lines
HMPE 12-strand braided synthetic face line built for inland marine work, towing, mooring, winch lines, and general utility service.
Product information
Details
Ideal for:
Tugboats, harbor towing, and dredgers
Barges and fleeting operations
Winch lines
Towlines
Mooring lines
General utility

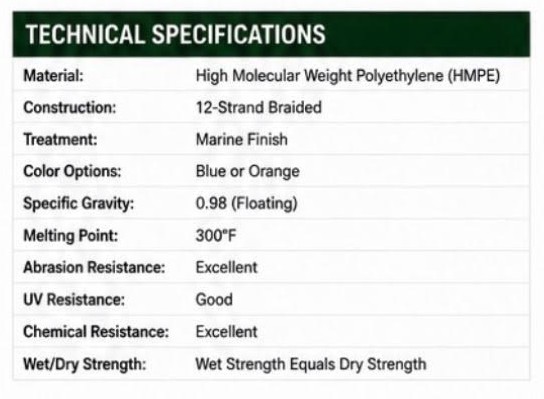

Technical Specifications
Rope Construction
| Material | High Molecular Weight Polyethylene (HMPE) |
|---|---|
| Construction | 12-Strand Braided |
| Treatment | Marine Finish |
| Color Options | Blue or Orange |
| Specific Gravity | 0.98 (Floating) |
| Melting Point | 300°F |
| Abrasion Resistance | Excellent |
| UV Resistance | Good |
| Chemical Resistance | Excellent |
| Wet/Dry Strength | Wet Strength Equals Dry Strength |

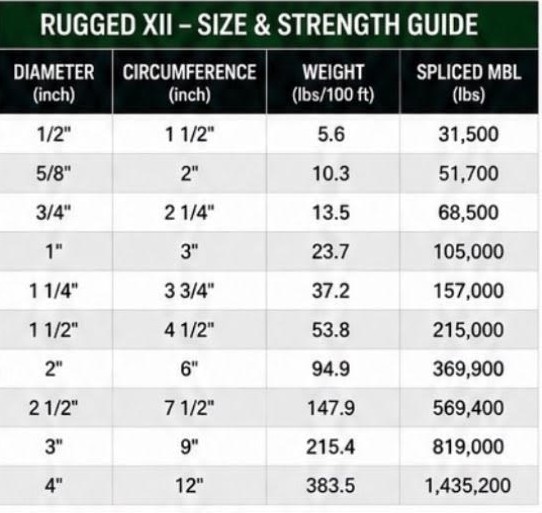

Size & Strength Guide
Spliced MBL by Diameter
| Diameter | Circumference | Weight lbs/100 ft | Spliced MBL lbs |
|---|---|---|---|
| 1/2" | 1 1/2" | 5.6 | 31,500 |
| 5/8" | 2" | 10.3 | 51,700 |
| 3/4" | 2 1/4" | 13.5 | 68,500 |
| 1" | 3" | 23.7 | 105,000 |
| 1 1/4" | 3 3/4" | 37.2 | 157,000 |
| 1 1/2" | 4 1/2" | 53.8 | 215,000 |
| 2" | 6" | 94.9 | 369,900 |
| 2 1/2" | 7 1/2" | 147.9 | 569,400 |
| 3" | 9" | 215.4 | 819,000 |
| 4" | 12" | 383.5 | 1,435,200 |
Attached Product Photos
Rugged XII Reference Images
