U12A-22 Utility Air Winch

Description:

The Model U12A-22 Utility Winch follows in the footsteps of Wintech’s very popular U-8 Series Portable Air Winches, but has the added benefits of higher line pull and more cable storage capacity.The Model U12A-22 is a rugged yet economical air tugger designed for in-plant maintenance, construction, mining, oilfield and marine industries. A precision engineered worm drive gearbox with oil bath ensures positive load holding for excellent position control.

Standard Features:

Heavy duty steel frame and steel drum

Fully enclosed worm gearbox provides positive load holding and positioning characteristics

Direct mounted fully reversing directional control valve with proportional handle for simultaneous speed control

Bolt down mounting feet

Dual mufflers are standard for quieter operation

Optional Features:

Hand held remote pendant with push button controls

In-line filter/lubricator/regulator assembly

Winch cables

Extended drum length

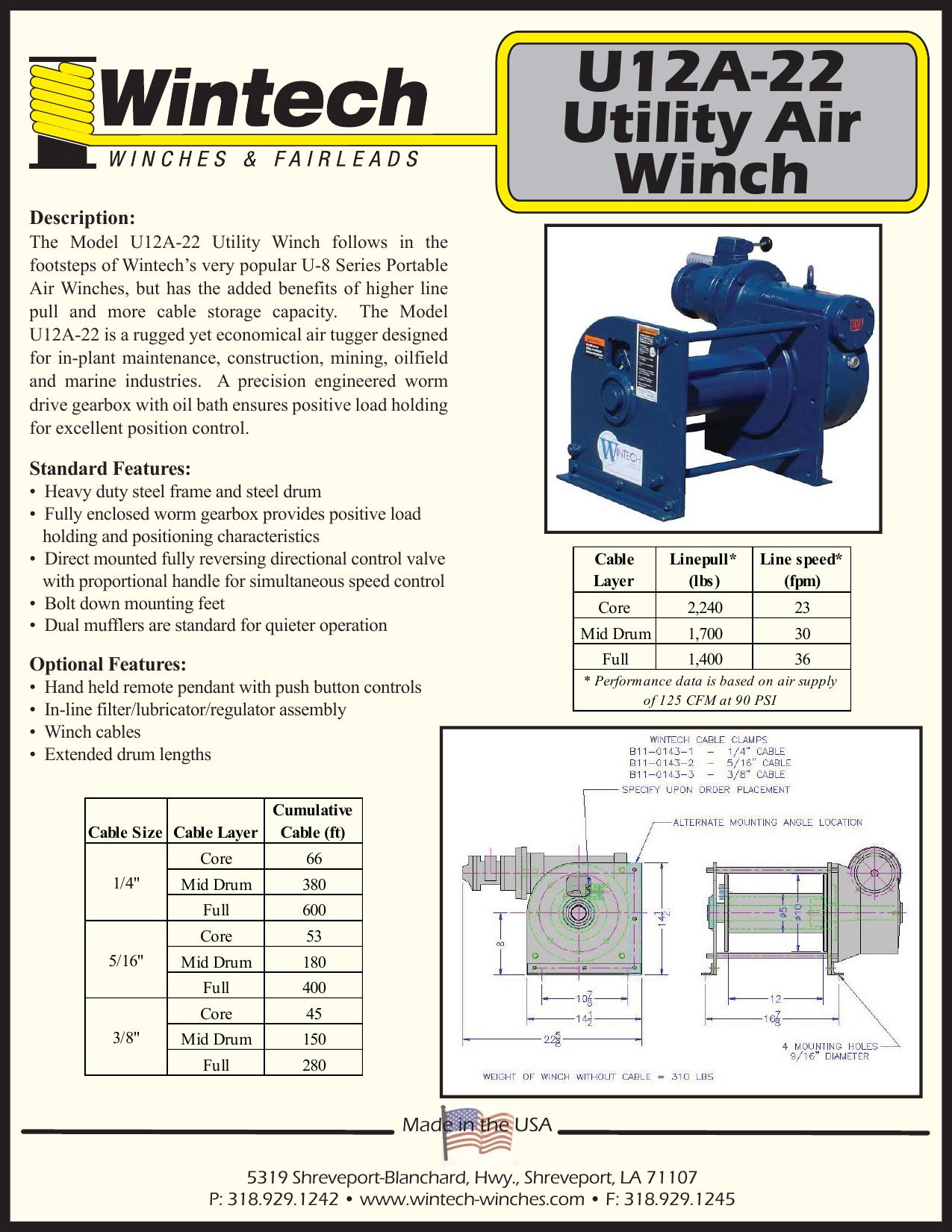

See U12A-22 Air Winch Brochure for performance data and cable capacities.
