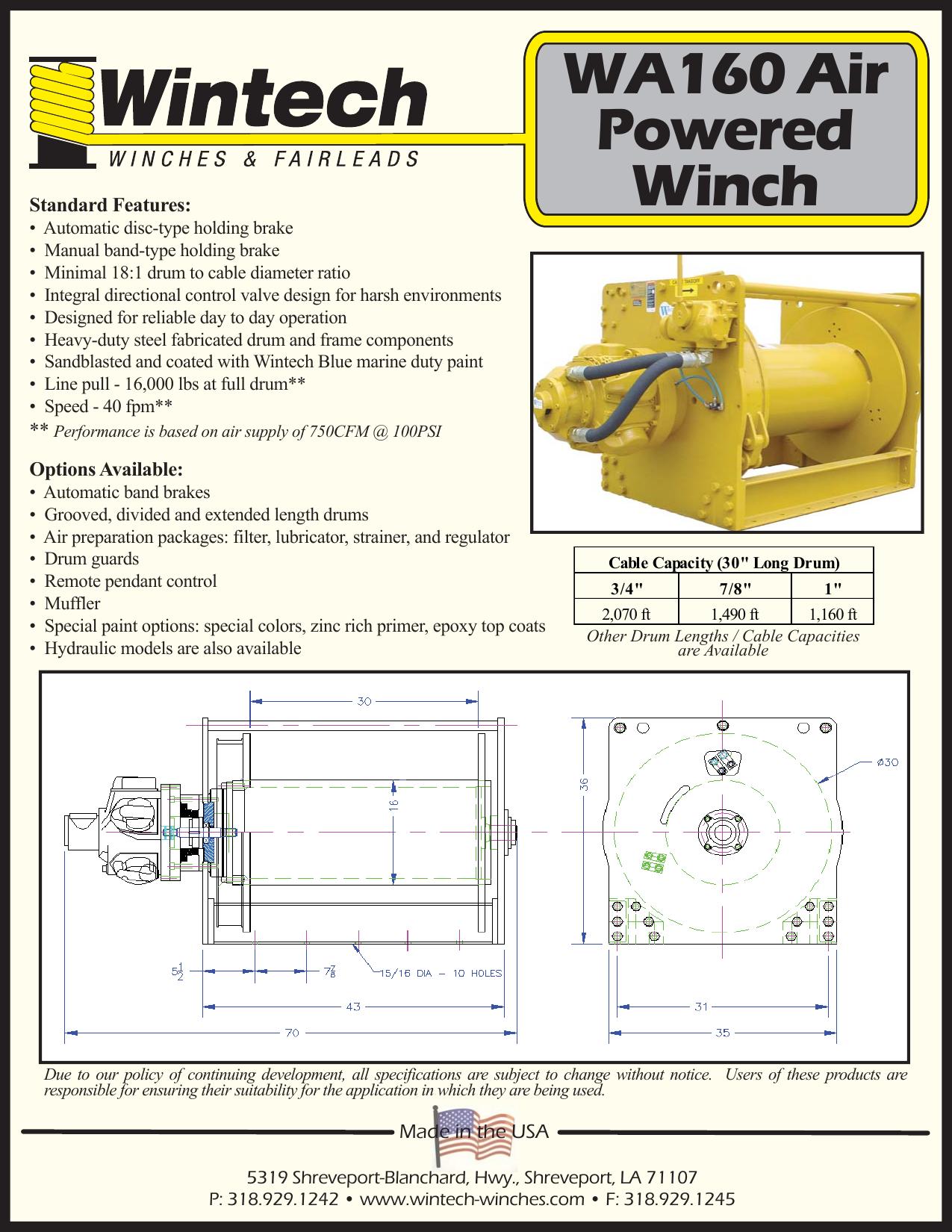

WA160 Air Winch - 16,000 lbs

Standard Features:

Automatic disc-type holding brake

Manual band-type holding brake

Minimal 18:1 drum to cable diameter ratio

Integral directional control valve design for harsh environments

Designed for reliable day to day operation

Heavy-duty steel fabricated drum and frame components

Sandblasted and coated with Wintech Blue marine duty paint

Line pull - 16,000 lbs at full drum**

Speed - 40 fpm**

** Performance is based on air supply of 750CFM @ 100PSI

Options Available:

Automatic band brakes

Grooved, divided and extended length drums

Air preparation packages: filter, lubricator, strainer, and regulator

Drum guards

Remote pendant control

Muffler

Special paint options: special colors, zinc rich primer, epoxy top coats

Hydraulic models are also available

See WA-160 Air Winch Brochure for dimensional drawings and cable capacities.
