WA45 Air Winch - 4,500 lbs

Standard Features:

Automatic Disc-Type Holding Brake

Manual Band-Type Holding Brake

Cable Friendly Drum to Cable Diameter Ratio (18:1)

Integral Directional Control Valve design for Harsh Environments

Designed for Reliable Day to Day Operations

Heavy-Duty Steel Fabricated Drum and Frame Components

White Blasted and Coated with Wintech Blue Marine Duty Paint (unless specified color)

Line pull - 4,500 lbs at full drum**

Speed - 55 fpm**

** Performance is based on air supply of 340CFM @ 100PSI

Optional Features:

Automatic Band Brakes

Grooved, Divided and Extended Length Drums

Air Preparation Packages: Filter, lubricator, strainer, and regulator

Drum Guards

Remote Pendant Control

Muffler

Special Paint Options: Special colors, Zinc Rich Primer, Epoxy Top Coats

Hydraulic Models Also Available

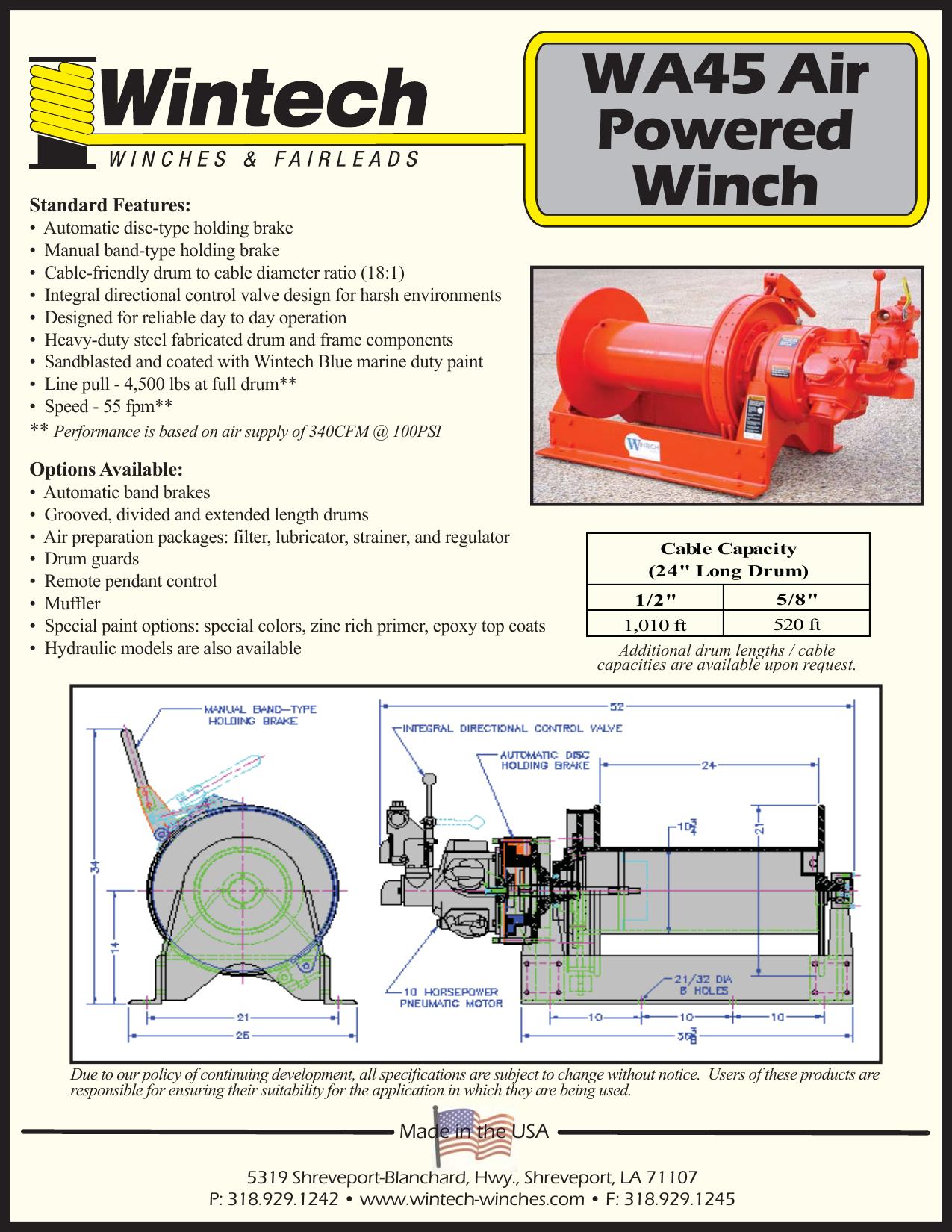

See WA-45 Air Winch Brochure for dimensional drawings and cable capacities.
