Wintech Capstans
Custom Vertical Capstans - 10,000 to 30,000 lbs
Standard and custom vertical capstans for continuous line pull and material movement.
Product information
Details
Description:
Wintech's custom vertical capstans provide a continuous running linepull from 10,000 to 30,000 lbs and a linespeed from 10 fpm to 100 fpm to suit your application. The stall and holding linepull is 200% of continuous running linepull. The custom vertical capstans are designed specifically to suit your application.
Standard Features:
Rugged construction suitable for both industrial and marine applications
Pedestal or through deck mounting
Totally enclosed fan cooled motor suitable for outdoor applications
Spring applied - electric released holding brake
Direct drive planetary drive
Options Available:
NEMA 4 controls with foot switch
Motor and brake heaters for cold environments
Hydraulic powered drives
See Custom Vertical Capstan Product Brochure for additional information.
If you don't see what you need, we specialize in custom designed capstans and winches.
Contact us today so we can help design a capstan or winch to fit your application (318-929-1242).

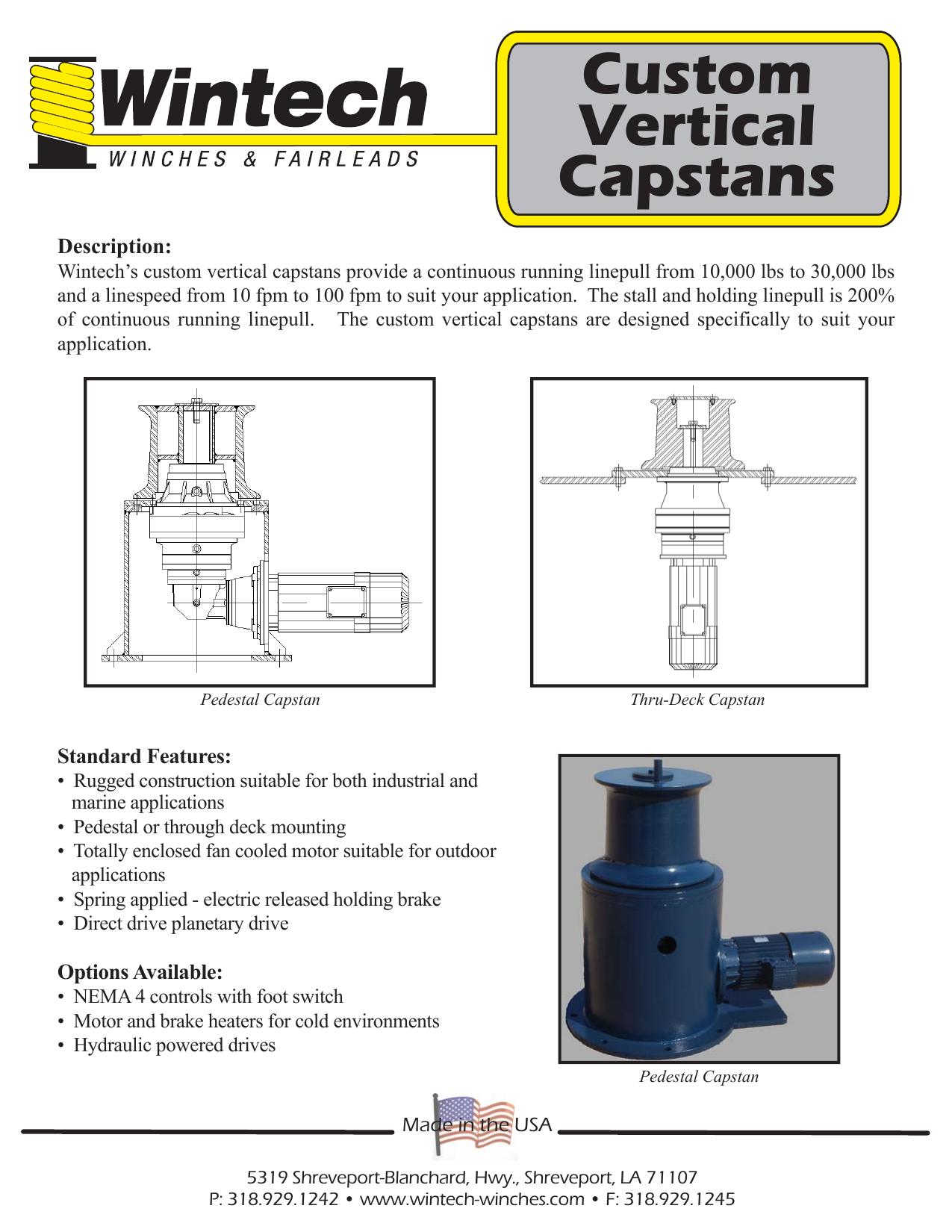

Product Specifications
Product Brochure
