Electric Low-Profile Barge Winch - 40 to 90 Ton
Deck winches, barge connector winches, low-profile units, and standard upright models.
Product information
Details
Standard Features :
Totally enclosed, marine grade, fully reversing crane and hoist duty motors in 220V, 440V and 575V
Winch stall pulls from 11,000 to over 50,000 lbs
Winch electric brake and worm drive gear holds from 46,000 lbs to 111,000 lbs
Flame-cut precision machined side frames
Enclosed drive gearing
Steel gear guard prevents slack cable from fouling gears
Automatic disc brake
Simple effective design reduces maintenance costs
Options Available:
Remote control packages for pilot house control NEMA 1; General purpose enclosure NEMA 4; Watertight (NEMA 1 or 4 magnetic reversing starter, NEMA 1 or 4 push button station)
Wider drums
Slip clutch
Drum divider flange
Grooved drums
Angle deck brackets
Disengaging clutch and hand wheel for emergency power loss operation
Dual winch, barge spotting system
Air and hydraulic models available upon request
Cable installation
See the Electric Low-Profile Barge Winch Brochure for further information, including dimensional drawings and cable capacities.
Electric Low-Profile Barge Winch Parts and Maintenance Manual

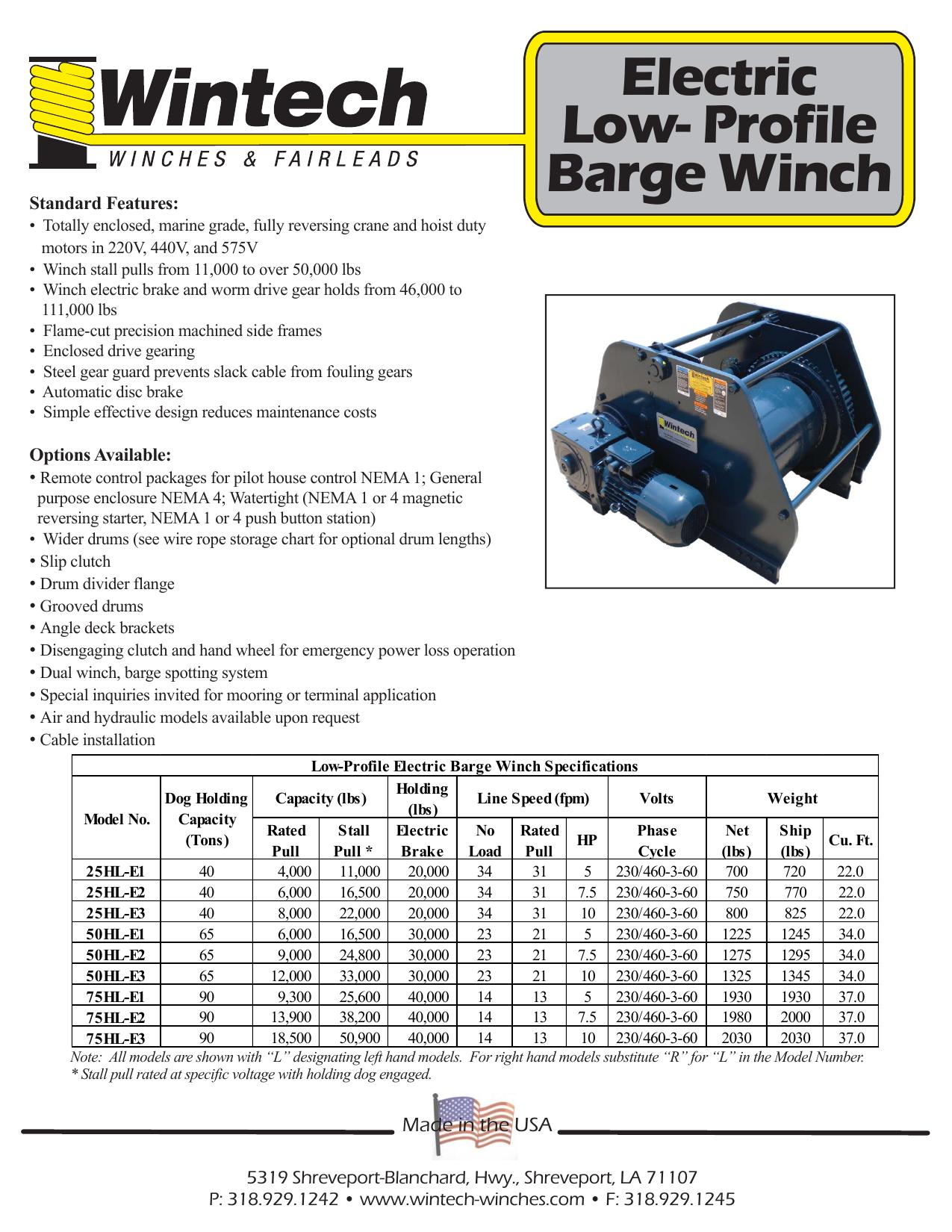

Product Specifications
Electric Low-Profile Barge Winch
