Wintech Deck & Barge Winches
Standard Upright Barge Winch
Deck winches, barge connector winches, low-profile units, and standard upright models.
Product information
Details
Standard Features:
Fully reversing crane and hoist duty motors that are totally enclosed
Control from pilot house or deck
Stall pull up to 40,000 lbs
Improved brake holding capacity up to 70,000 lbs
Drum guard prevents slack cable from fouling gears
Hand wheel for operation in the event of power loss
Options Available:
Flange mounted ball bearings for power shaft, factory installed
Grooved drums
Drum divider flange
Remote control packages: NEMA 1 - General purpose enclosure or NEMA 4 - Watertight enclosure (NEMA 1 or 4 magnetic reversing starter or NEMA 1 or 4 push button station)
Cable installation
See the Standard Upright Barge Winch Brochure for additional information, including dimensional drawings and cable capacities.
Standard Upright Barge Winch Parts and Maintenance Manual

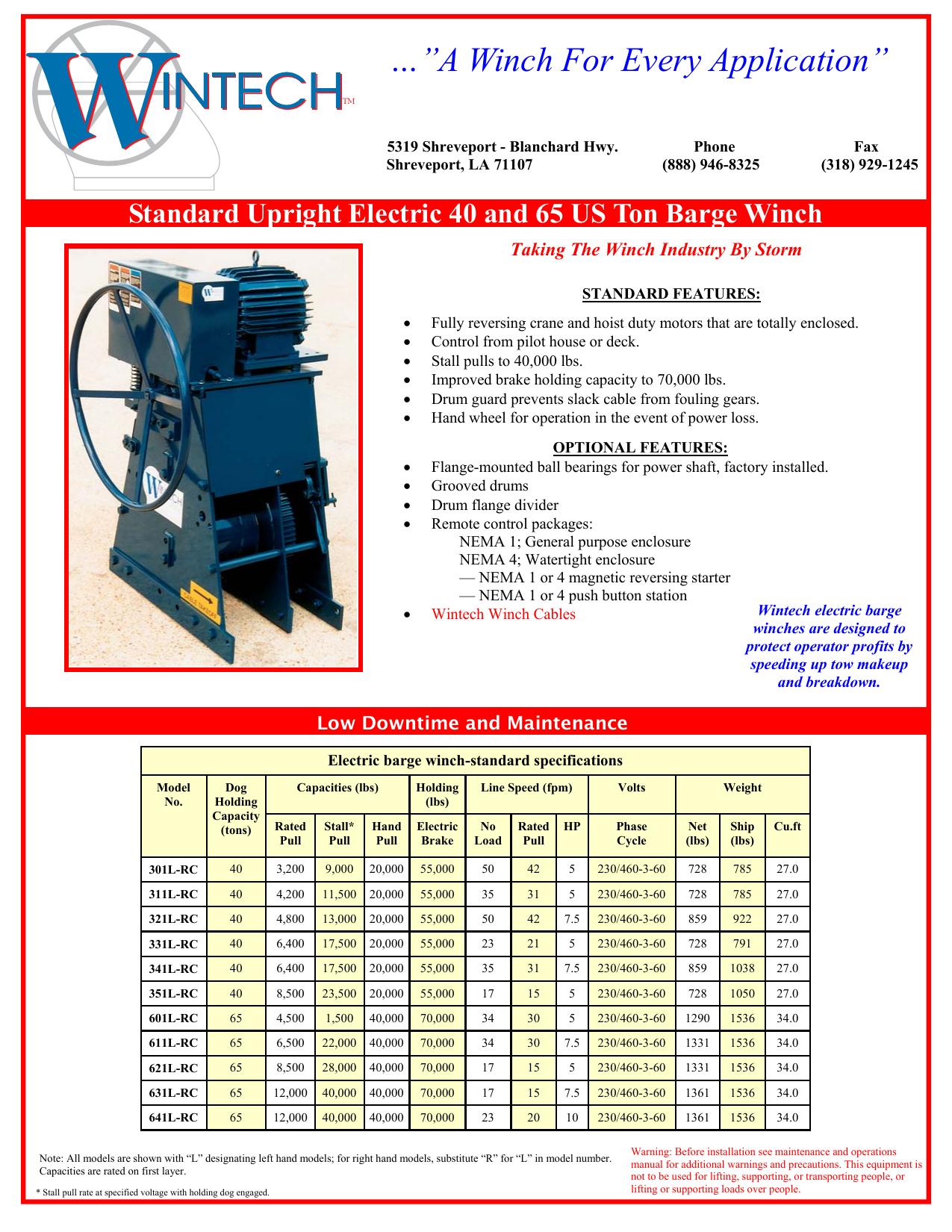

Product Specifications
Standard Upright Barge Winch Brochure
