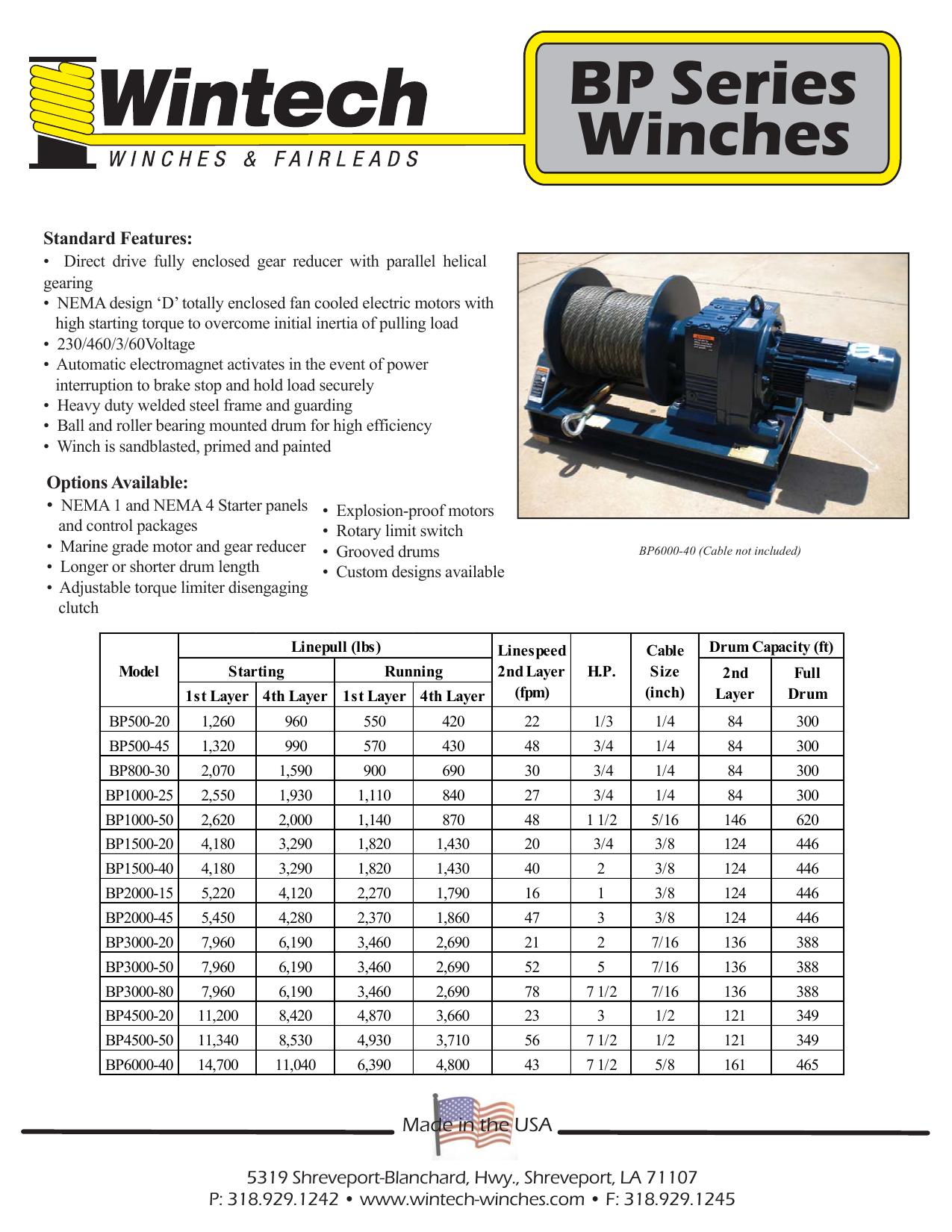

BP Series Winches - 500 to 6,000 Lbs. Capacity

Standard Features:

Direct drive fully enclosed gear reducer with parallel helical gearing

NEMA design 'D' totally enclosed fan cooled electric motors with high starting torque to overcome initial inertia of pulling load

230/460/3/60 Voltage

Automatic electromagnet activates in the event of power interruption to brake, stop and hold load securely

Heavy duty welded steel frame and down provision

Ball and roller bearing mounted drum for high efficiency

Winch is sandblasted, primed and painted

Options Available:

NEMA 1 and NEMA 4 Starter panels and control packages

Marine grade motor and gear reducer

Longer or shorter drum length

Adjustable torque limiter disengaging clutch

Explosion-proof motors

Rotary limit switch

Grooved drums

Custom designs available

See BP Series Product Brochure for additional information including linepull by layer, cable capacity, and dimensional drawings. If you don't see what you need, we specialize in custom designed winches. Contact us today so we can help design a winch to fit your application (318-929-1242).

BP4500-20

BP1000-25 w/Grooved Drum (Cable not Included)
