CP Series Winches - 2,000 to 25,000 Lbs. Capacity

Standard Features:

Parallel helical gear reducer with final chain drive

NEMA design 'D' totally enclosed fan cooled electric motors with high starting torque to overcome initial inertia of pulling load

230/460/3/60 Voltage

Automatic electromagnet activates in the event of power interruption to brake, stop and hold load securely

Heavy duty welded steel frame and guarding

Options Available:

NEMA 1 and NEMA 4 Starter panels and control packages

Marine grade motor and gear reducer

Longer or shorter drum length

Adjustable torque limiter disengaging clutch

Explosion-proof motors

Rotary limit switch

Grooved drums

Custom designs available

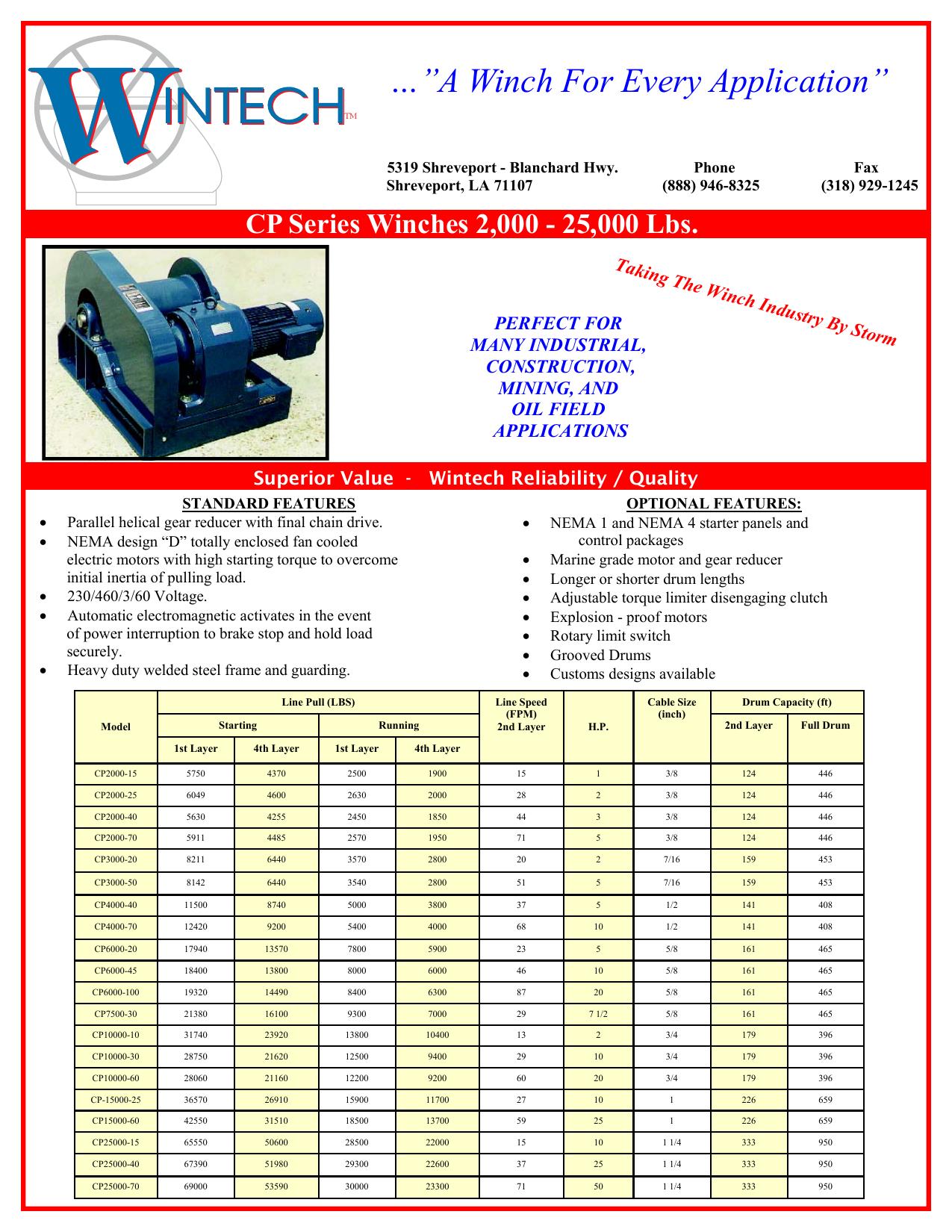

See CP Series Product Brochure for additional information including linepull by layer, cable capacity, and dimensional drawings. If you don't see what you need, we specialize in custom designed winches. Contact us today so we can help design a winch to fit your application (318-929-1242).

Custom CP-Series Winch - CP6000 with Level Wind and Disengaging Clutch

Custom CP-Series Winch - CP10000-30 with Disengaging Clutch and Band Brake
