Wintech Electric Winches
RK Series Winches - 500 to 6,000 Lbs. Capacity
Electric pulling, mooring, traction, and utility winches for marine and industrial service.
Product information
Details
Standard Features:
Direct drive fully enclosed gear reducer with helical-bevel gearing
Totally enclosed fan cooled electric motors with high starting torque to overcome initial inertia of pulling load
230/460/3/60 Voltage
Automatic electromagnetic brake activates in the event of power interruption to brake stop and hold load securely
Heavy duty welded steel frame and drum construction with bolt down provision
Winch is sandblasted, primed and painted
Options Available:
NEMA 1 and NEMA 4 starter panels and control packages
Longer or shorter drum lengths
Explosion-proof motors
Disengaging clutch
Split drums for dual cables
Rapid response brake control
Rotary limit switch
Grooved drums
Custom designs available
See RK Series Product Brochure for additional information including linepull by layer, cable capacity, and dimensional drawings. If you don't see what you need, we specialize in custom designed winches. Contact us today so we can help design a winch to fit your application (318-929-1242).
Custom RK-Series Winch - RK3000 w/Clutch
Custom RK-Series Winch - RK7500 w/Four Roller Fairlead
Custom RK-Series Winch - RK4000 w/Dual Drum

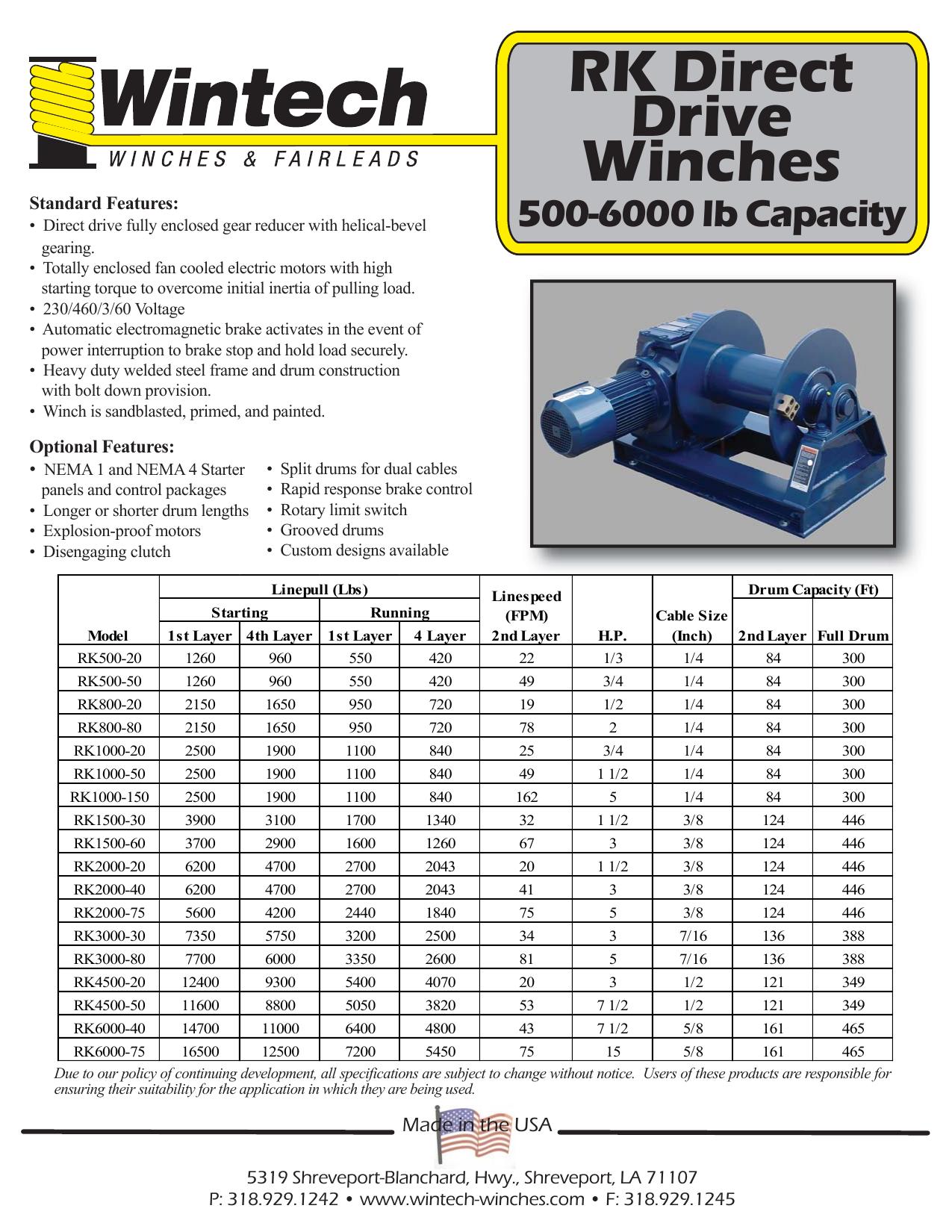

Product Specifications
Product Brochure
