TW 10000-30H Traction Winch

Standard Features:

Planetary gear box with final spur gear reduction

Multi-groove bullwheel design (sized for cable diameter)

Designed for reliable day to day operation

Heavy-duty steel fabrication drum and frame components

Max linepull - 10,000 lbs*

Speed - 30 fpm

Sandplasted and coated with Wintech Blue Marine Duty Paint

Optional Features:

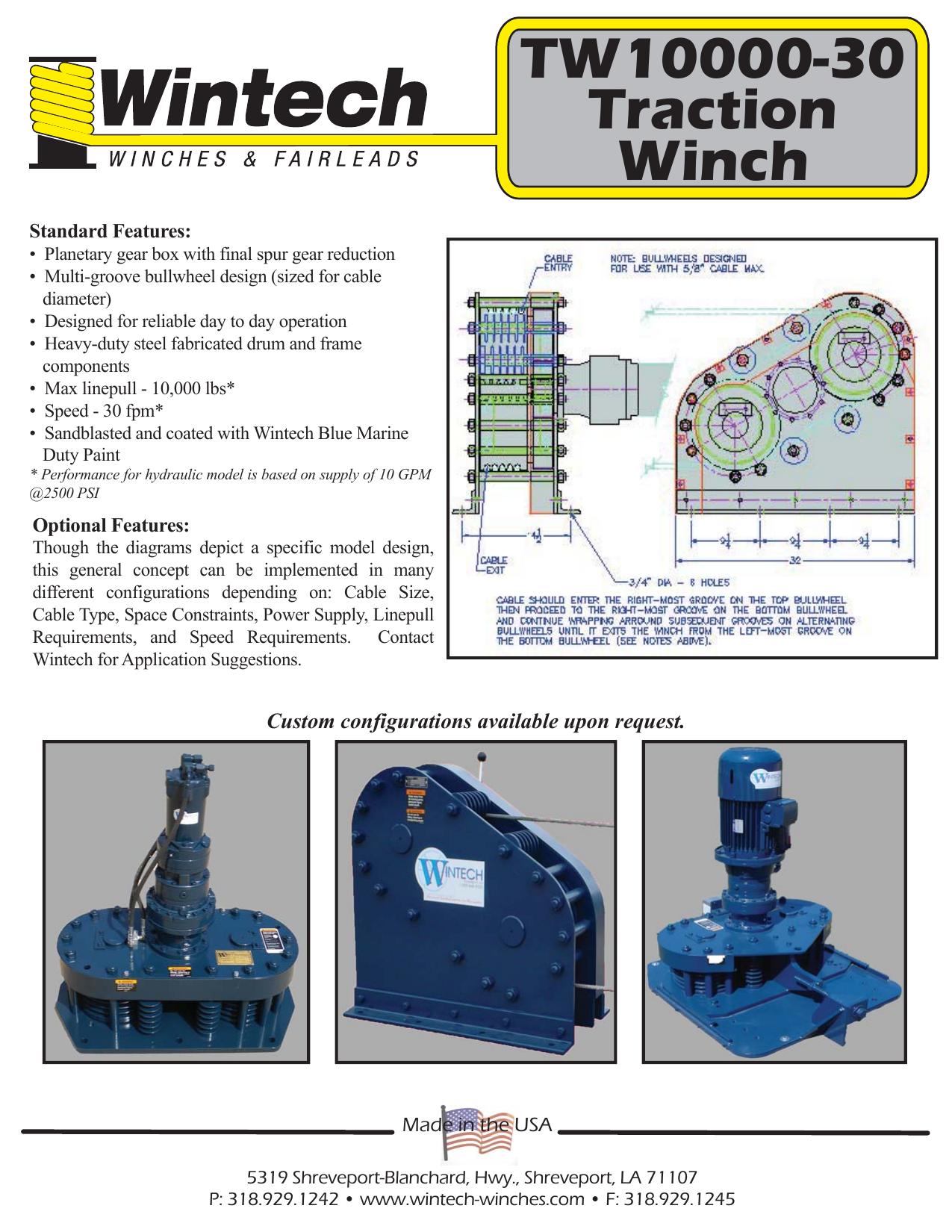

Though the diagram included on the brochure depicts a specified model design, this general concept can be implemented in many different configurations depending on cable size, cable type, space constraints, power supply, linepull requirements, and speed requirements. Contact Wintech for application suggestions.

See the TW 10000-30 Traction Winch Brochure for dimensional drawings and further details regarding this winch.
