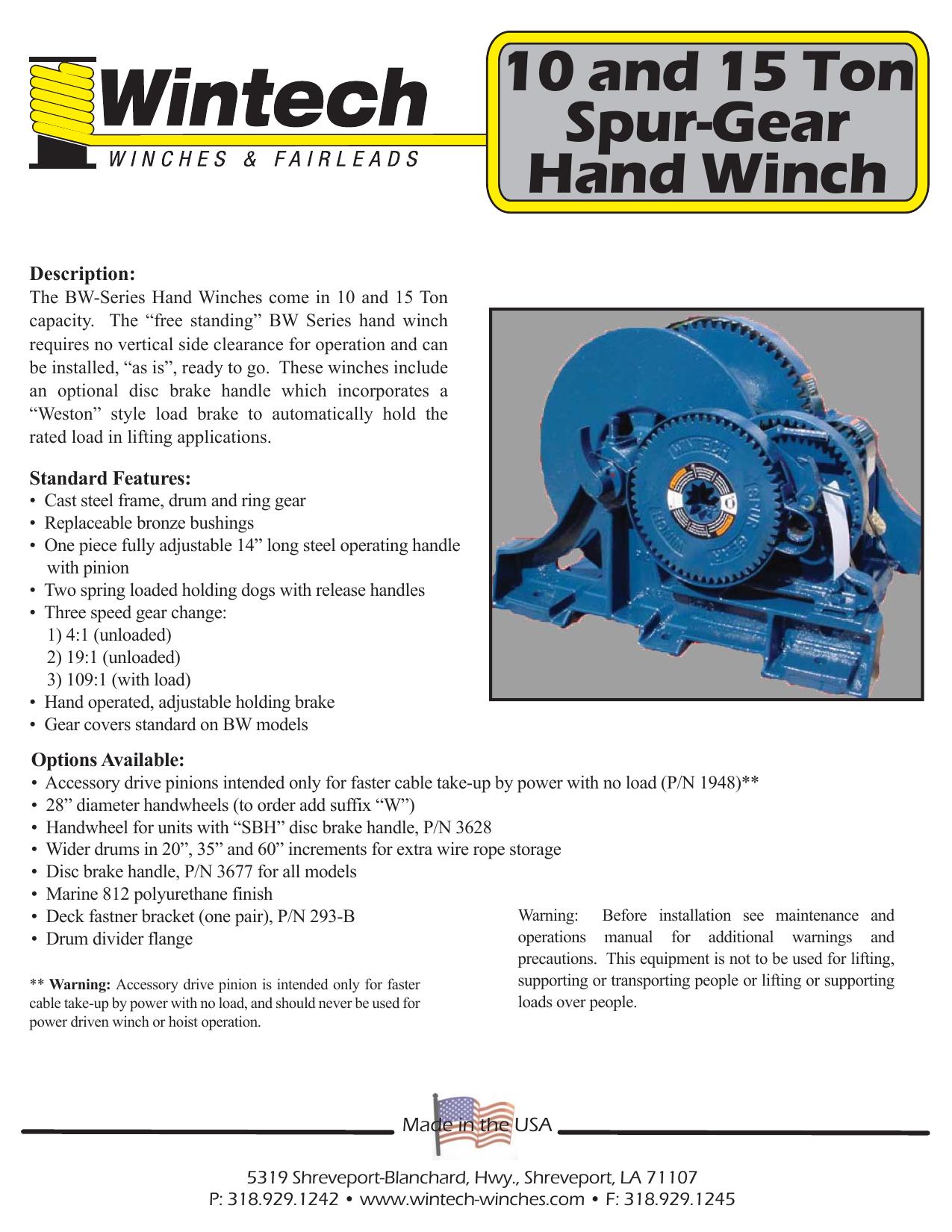

Spur Gear BW Series Winches - 10 and 15 Ton Capacity

Wintech's BW-Series Hand Winches come in 10 and 15 Ton capacities. The "free standing" BW Series hand winch requires no vertical side clearance for operation and can be installed, "as is", ready to go. These winches have an optional disc brake handle which incorporates a "Weston" style load brake to automatically hold the rated load in lifting applications.

Standard Features:

Cast steel frame, drum and ring gear

Replaceable bronze bushings

One piece fully adjustable 14" long steel operating handle with pinion

Two spring loaded holding dogs with release handles

Three speed gear change: 4:1 (unloaded)

19:1 (unloaded)

109:1 (with load)

Hand operated, adjustable holding brake

Gear covers

Options Available:

Accessory drive pinions**

28" diameter handwheel

Wider drums in 20", 35" and 60" increments for extra rope storage

Disc brake handle

Marine 812 polyurethane finish

Deck fastner bracket (one pair)

Drum divider flange

** Warning: Accessory drive pinion is intended only for faster cable take-up by power with no load, and should never be used for power driven winch or hoist operation.

See further details including cable capacities and dimensional drawings in the BW-Series Product Brochure .

BW-Series Parts and Maintenance Manual
