Spur Gear Hand Winch - 2 and 5 Ton Capacity

Wintech's LM-Series (2 Ton) and HM-Series (5 Ton) Hand Winches are designed for marine duty and industrial use.

Standard Features:

Cast steel drums and ring gear

Steel load bearing components, cast steel frames

Replaceable bronze bushings

One piece fully adjustable 14" long steel operating handle with pinion

Spring loaded holding dog with release handle

Hand operated, adjustable holding brake

Easy free spooling

Two speed gear change offers fast cable take up and easier winching

Options Available:

28" diameter hand wheel

Hand wheel for units with disc brake handle (SBH)

Extended shaft pinion 17/16" x 12"

Power drive pinion

Gear covers

Disc brake handle (SBH)*

Marine 812 top coat

Reverse dog assembly

Drum divider flange

* Disc brake handle incorporates a "Weston style load brake to automatically hold the rated load in lifting applications.

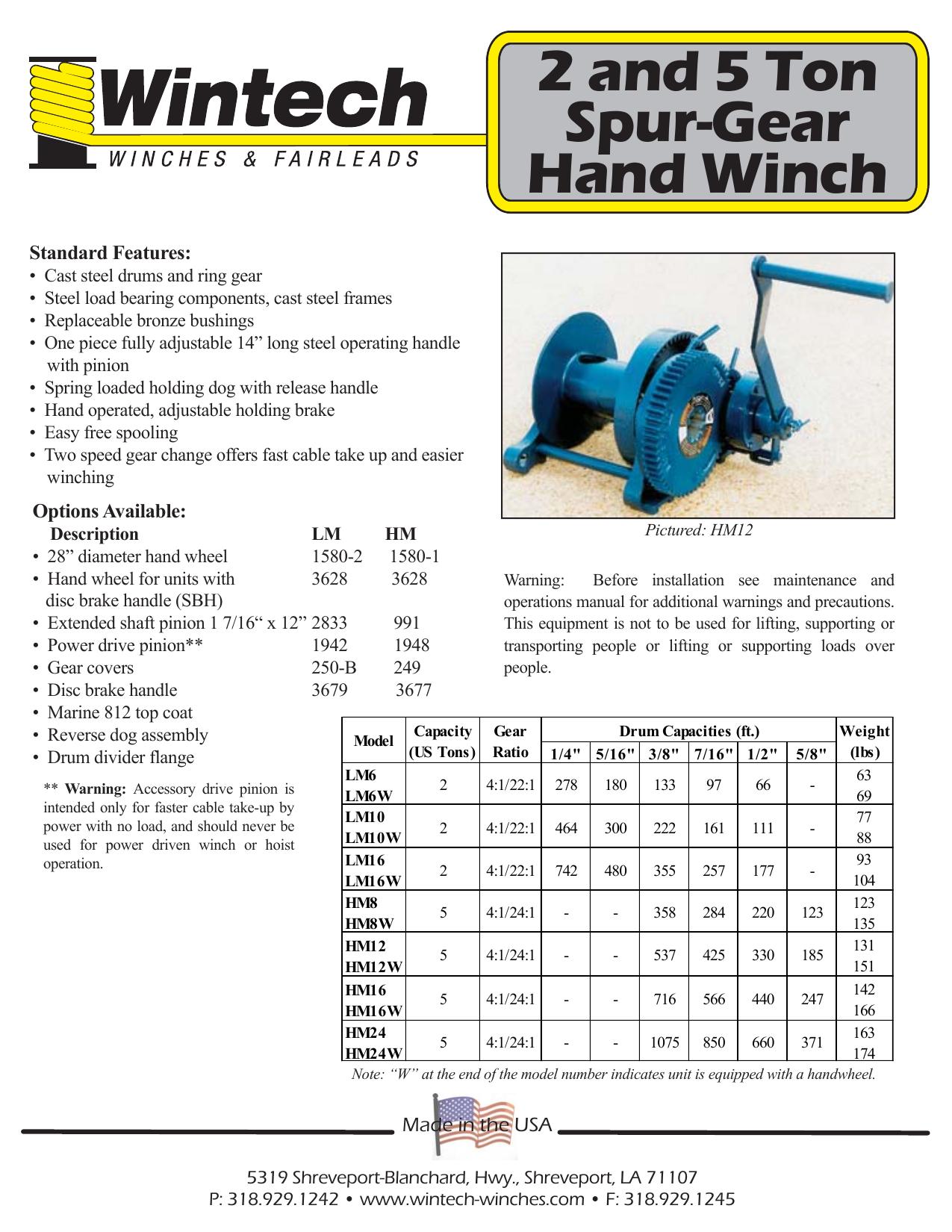

See further details including cable capacities and dimensional drawings in the 2 and 5 Ton Hand Winch Brochure

2 and 5 Ton Hand Winch Parts and Maintenance Manual
