Railcar Pulling System
Barge moving, railcar pulling, tightening, and automated mooring systems.
Product information
Details
Single Winch/One Direction
Two Winches/Two Direction:
Smooth core drum
Linespeed range of 5,000 lbs to 35,000 lbs
Linespeed range of 5 fpm to 30 fpm
Drum capacity depending on application
Parallel helical gear reducer
Final chain drive from gear reducer
Fabricated steel frame construction
Sandblasted prior to painting
Painted with Wintech Blue marine duty paint
16" bronze drag brake for two direction
Integrated controls for two winch option
One winch pulls in while the other freespools
Drag brake will hold tension on freespool winch
CP13500-17-GD-PP
Single Winch/Two Direction:
Grooved drjum
Push pull application
One cable on/One cable off design
Linepull range of 5,000 lbs to 35,000 lbs
Linespeed range of 5 fpm to 30 fpm
Drum capacity depending on application
Parallel helical gear reducer
Final chain drive from gear reducer
Fabricated steel frame construction
Sandblasted prior to painting
Painted with Wintech Blue marine duty paint
See the Railcar Pulling System Brochure for additional information including possible railcar puller track layouts.

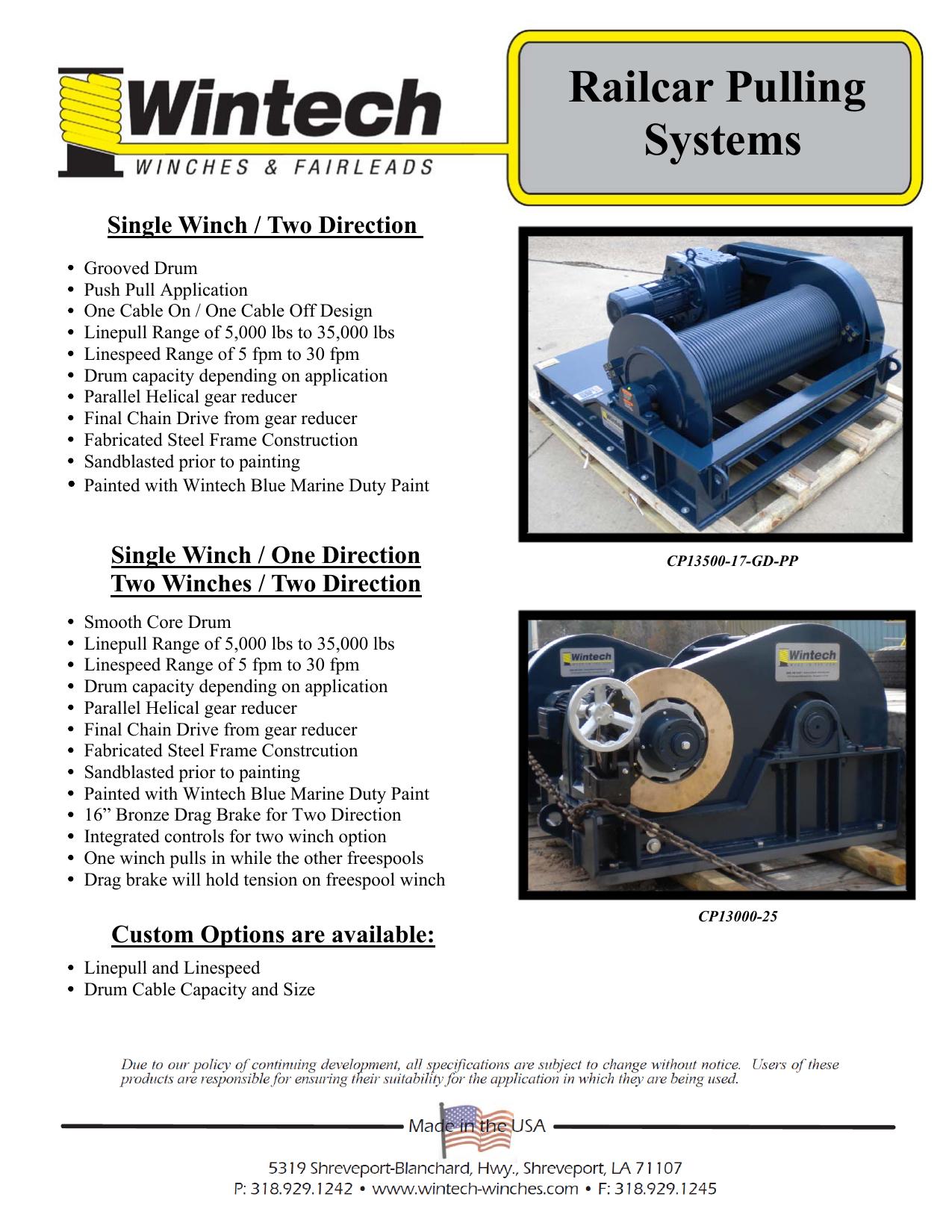

Product Specifications
